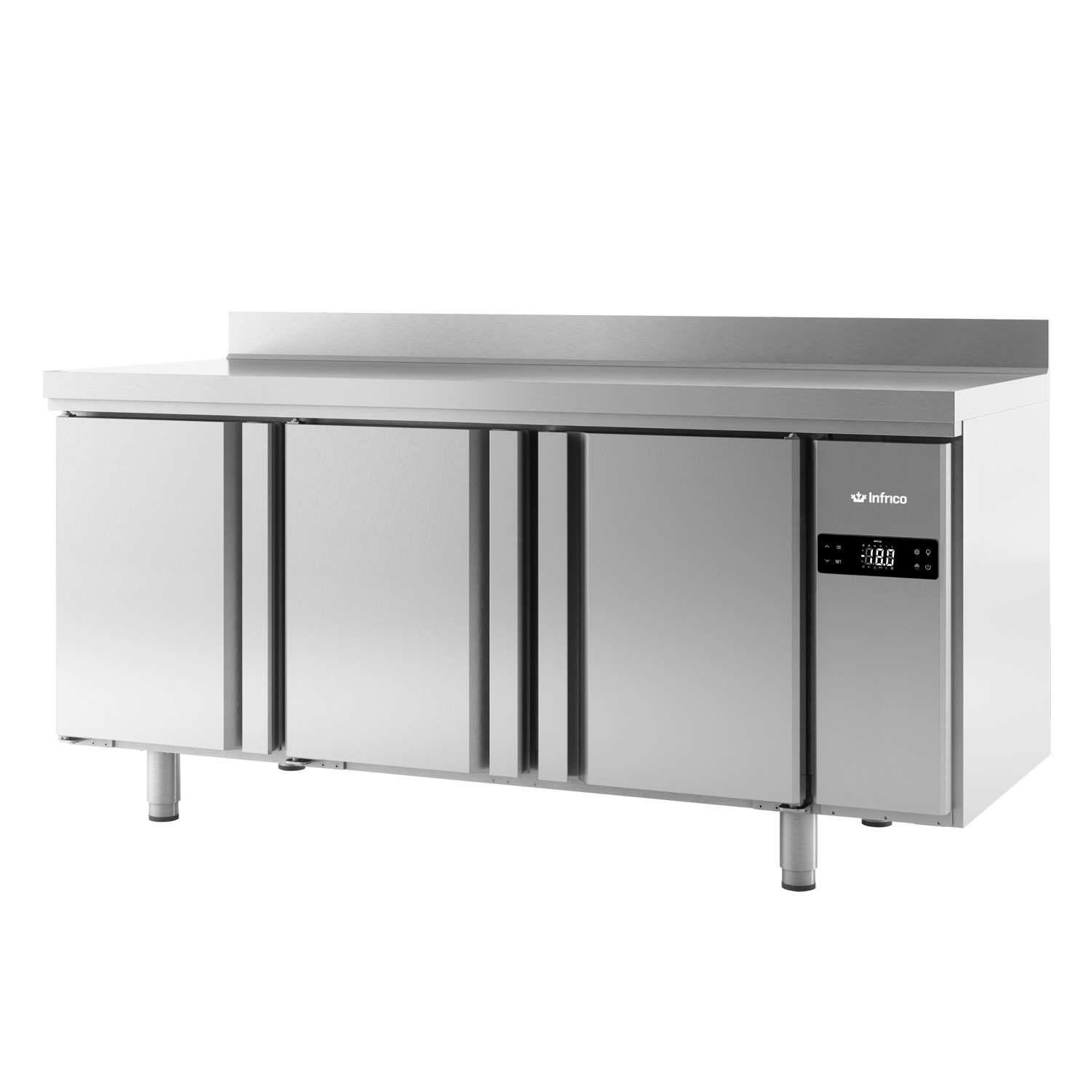

BMGN 2450 GRBT
Pre-installed refrigerated table GN1/1 700 Series
Description
[row ]
[col span=”1/2″ ]
Energy rating
Improved energy rating, due to the use of R-290 refrigerant, electronic fans and optimized air circulation for better indoor temperature uniformity.
New digital controller
The new IP 65 intuitive, touch-sensitive digital controller has higher accuracy in temperature control. Easier adjustment of the desired temperature range.
We comply with regulations
Infrico is audited and certified by the international organization AENOR in ISO 9001:2015 (Quality); ISO 14001:2015 (Environment); OSHAS 18001:2007 (Occupational Health and Safety), and by INTERTEK in accordance with UL 471 and NSF 7.
[/col]
[col span=”1/2″ ]
Structure
Fully injected compact structure.
70 mm thick polyurethane insulation, injected at high pressure, CFC-free, density 40 Kg/m3, Zero ODP and Low GWP.
New door design
New door design with double grip handle. In addition, they are equipped with hinges for automatic return and permanent pressure during closing. The automatic return is released when the opening exceeds 95º. They include “cleanless” flat weatherstripping with four easily removable chambers.
Refrigeration
3/8″ evaporator connection tube (capillary not included).
Forced evaporation system.
Hot gas defrost.
[/col]
[/row]
Cad & Descargas
Cad & Descargas
* El despiece disponible para descargar corresponde a la última versión actualizada, si desea ver una versión más antigua, debe consultarlo en Infrico by You
